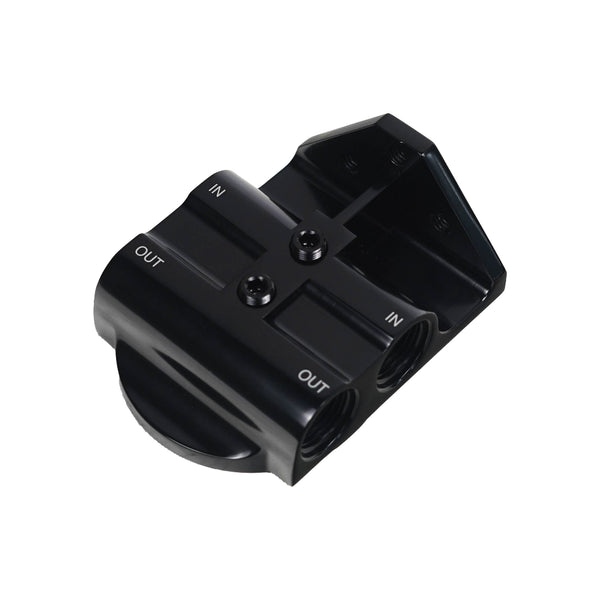

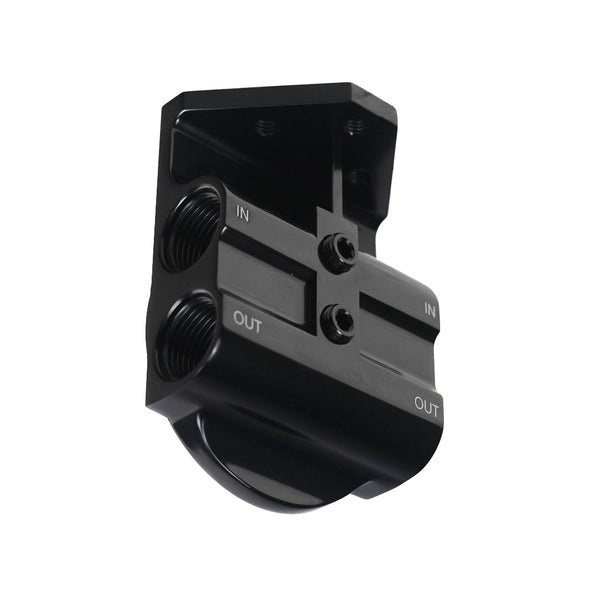

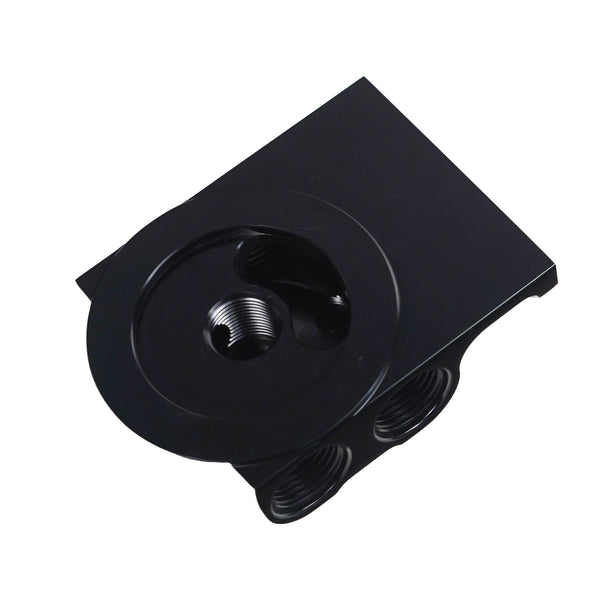

Billet 4-Port Side Entry Remote Oil Filter Mount
The Demon Pro Parts Billet 4-Port Side Entry Remote Oil Filter Mount is a premium solution for remote oil filter relocation, engineered for high-performance engines and tight engine bay packaging. Designed to suit a standard Z9 oil filter, this mount delivers exceptional flow, strength, and flexibility for street, track, and motorsport applications.
CNC machined from high-quality billet aluminium, the mount features a large internal bore to maximise oil flow and minimise pressure drop. The side-entry port configuration allows cleaner hose routing and easier installation in custom setups, making it ideal for performance builds requiring precise oil system management.
Equipped with a 3/4″-16 filter thread, AN-10 O-ring ports, and dual 1/8” NPT sensor ports, this remote oil filter mount supports aftermarket oil pressure and oil temperature sensors, giving you full monitoring capability in one compact unit.
Each mount is supplied with the required fittings to simplify installation, making it a reliable and versatile choice for custom oil system upgrades.
Key Features & Specifications
-
Billet 4-port side entry remote oil filter mount
-
Suits Z9 oil filters
-
Large internal bore for maximum oil flow
-
3/4″-16 filter thread
-
AN-10 O-ring ports for flexible hose routing
-
2x 1/8” NPT ports for oil pressure or temperature sensors
-

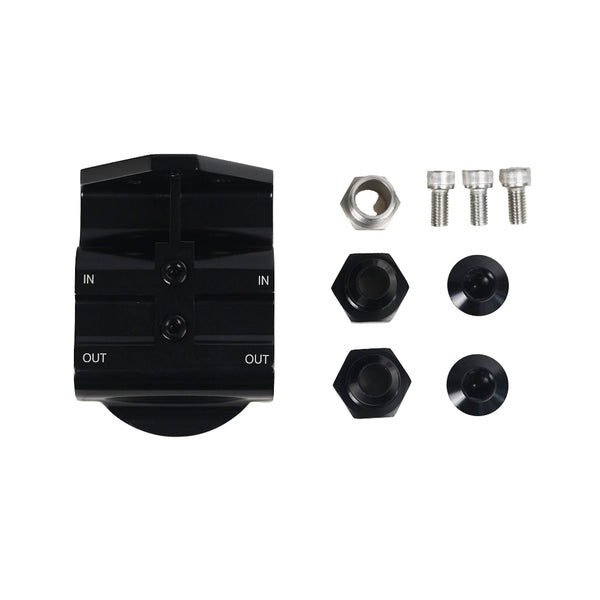

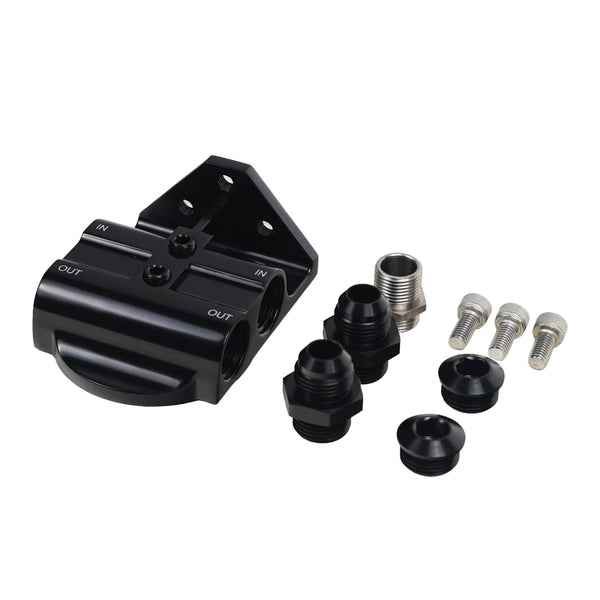

Includes 2x AN-10 male flare adapters
-
Includes 2x AN-10 plugs
-
Ideal for oil filter relocation, oil coolers, and custom engine bays
