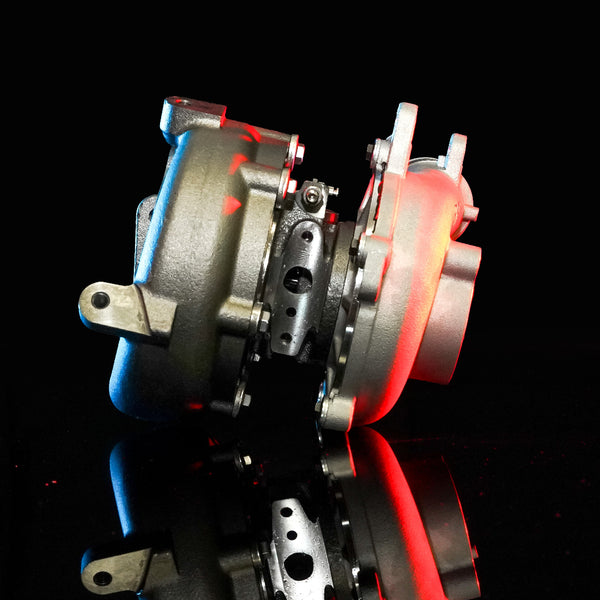

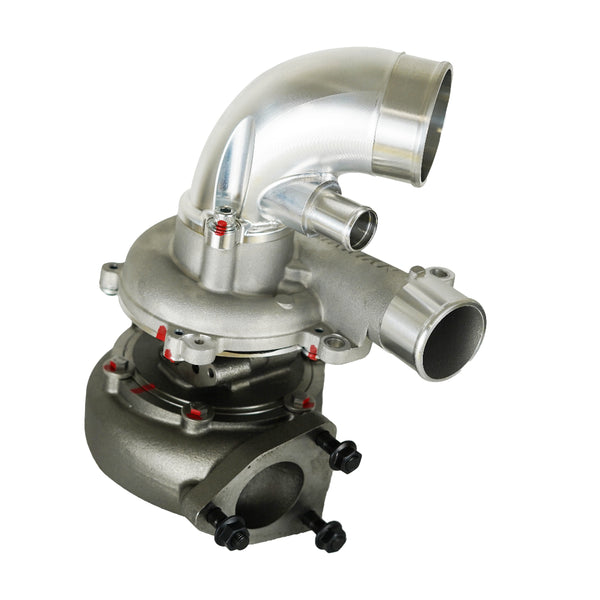

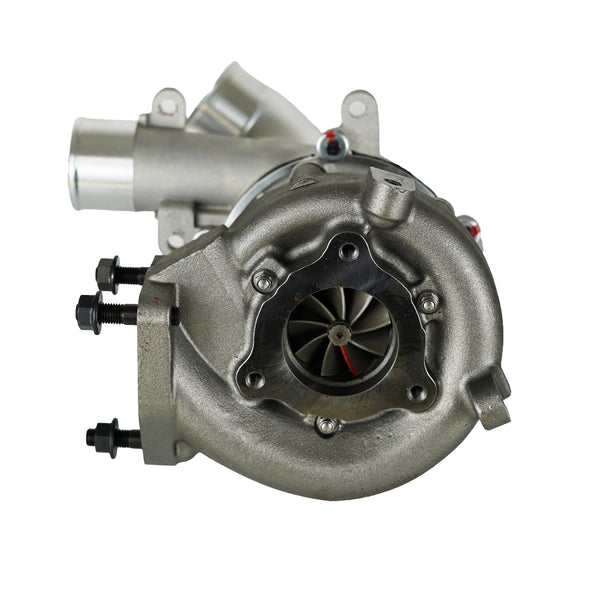

Spartan Turbo For Toyota Hilux KUN26 3.0L 1KD-FTV

SKU: STS-30110

$2,500.00

Tax includedShipping calculated at checkout

5.0 / 5.0 based on 1 review

Available Now!

12 Month Warranty

Flag of australia 01

Austrilan Owned & Operated

The Run Down:

Spartan Turbocharger Systems (S.T.S.) have specially made these turbochargers to help Hilux N70 KUN26 owners!
To have a turbocharger that can make big HP and stay reliable at the same time is always the dream!
S.T.S. spec these units out with the best of the best parts!
They are designed to make up to 30PSI reliably, yet they also lower EGTs, EMP & drive better than your factory 1KD turbo!
Through vigorous testing they can comfortably say that these units make between 200Whp-270Whp. (Dependent on vehicle set up & tuner)

Features:

- Boost rating 16PSI - 30PSI

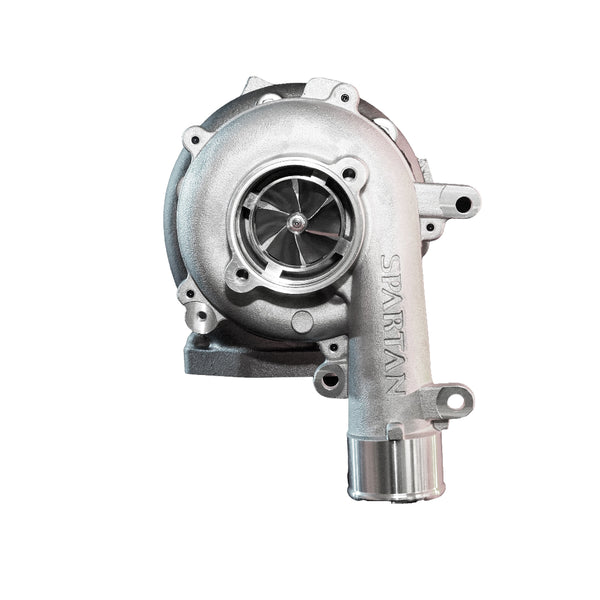

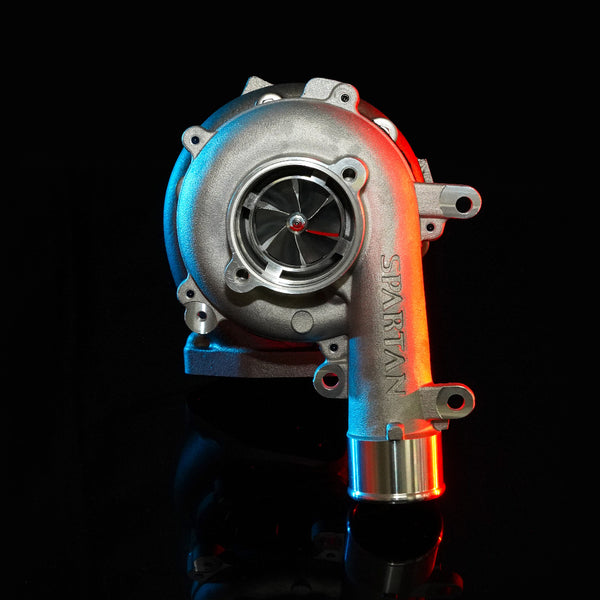

- 46mm 6+6 blade billet aluminium compressor wheel

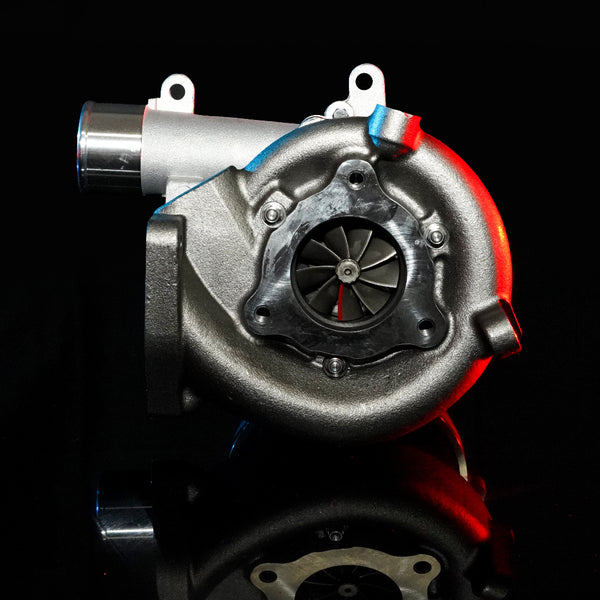

- 9 Blade inconel hybrid turbine wheel
- Custom heavy duty bearing
- Oil & coolant cooled core
- Anti-Surge front housing
- Designed specifically for the 1KD engine
- Direct install, no modification required

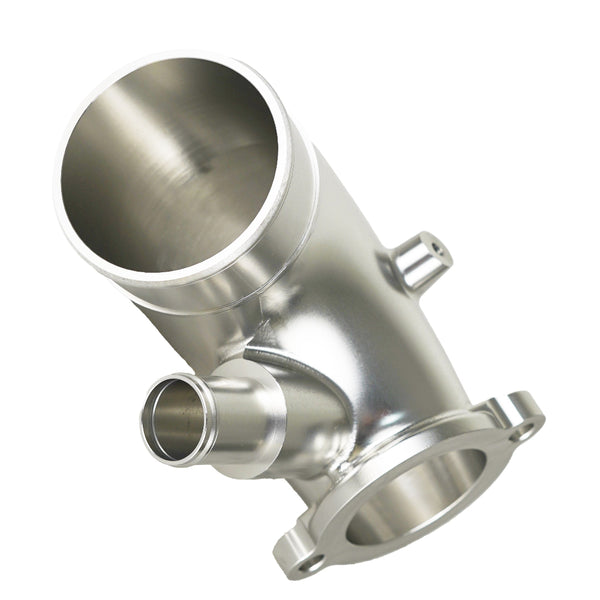

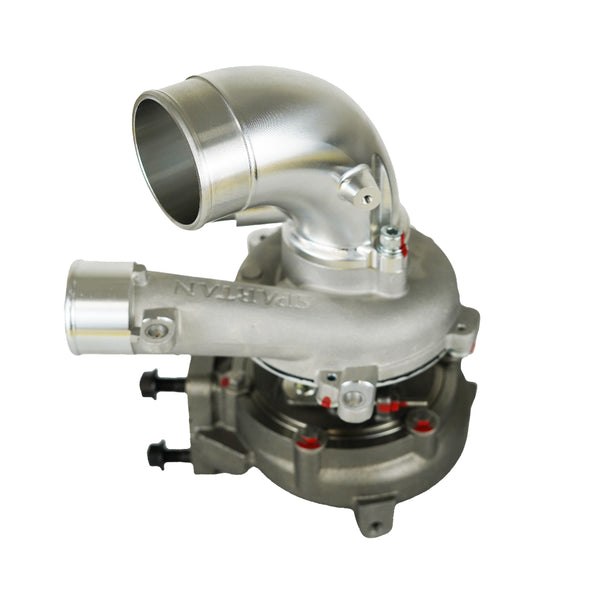

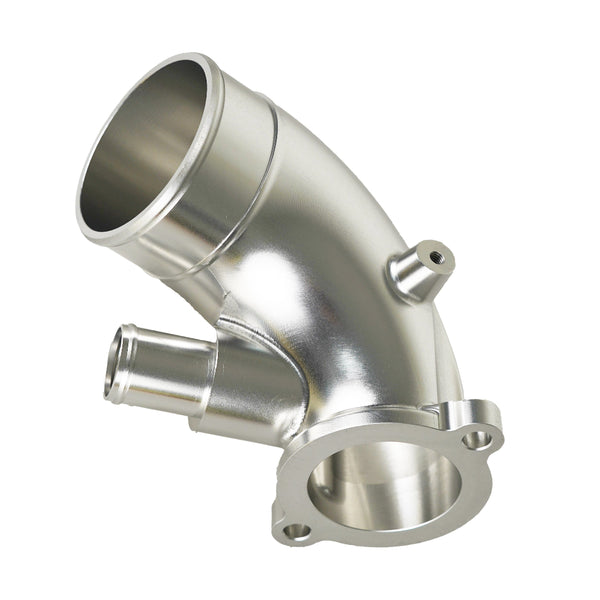

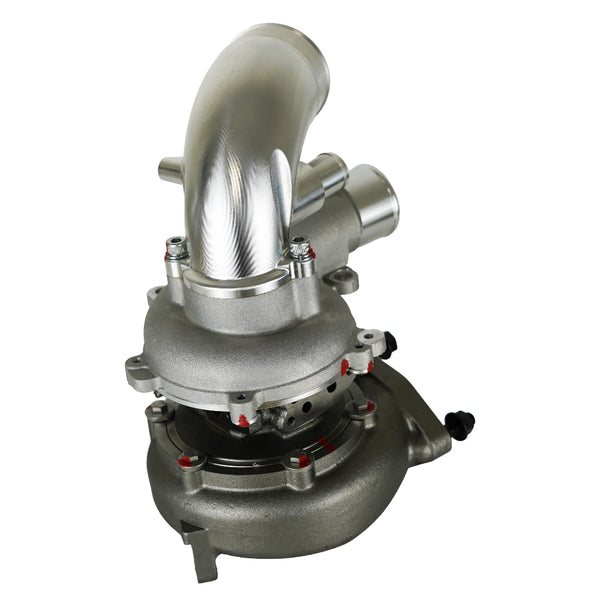

- Custom Billet Aluminium intake pipe

Specs:

 Compressor Turbine
Core
Inlet: 3 Inch Inlet: Factory Flange Lubrication: Oil
Outlet: Factory Size Outlet: Factory flange Coolant: Yes
Wheel: 46mm 6+6 Billet Aluminium Wheel: 9 Blade Inconel Hybrid Oil Fittings: Factory
Size: Factory Size: Factory Coolant Fittings: Factory



Fitting Notes:

The 30110-STS is a 100% direct fit to your Toyota Hilux N70 KUN26 with 3.0L 1KD engine.
We highly recommend a 3 Inch exhaust system, upgraded intercooler, airbox, intake and cooler pipes, upgraded 30% larger injector nozzles & a custom ECU tune.
(A copy and paste tunes wont work on these turbos)
This will allow you to get the most out of your new turbo

This turbo does not come with an actuator. We recommend ONLY using the original OEM actuator for the best reliability and tuning.

Brand: Spartan Turbocharger Systems (S.T.S.)
Model: STS-30110
Part No: 17201-30110 / 17201-0L040 / 17201-0L041 / 17201-0L042 / 1720130110 / 172010L040 / 172010L041 / 172010L042
Vehicles:
- Toyota Hilux 4x4 (KUN26) D4D 1KD-FTV 3.0L MY04-15
Toyota Hilux 2x4 (KUN16) D4D 1KD-FTV 3.0L MY04-15
Cooling: Oil & coolant
Gaskets: This turbo comes with a free complete gasket kit.
Warranty: 12 Months/25,000km - Whichever comes first
Delivery: Free post to Aus wide, normally takes 2-4 days to major cities.
