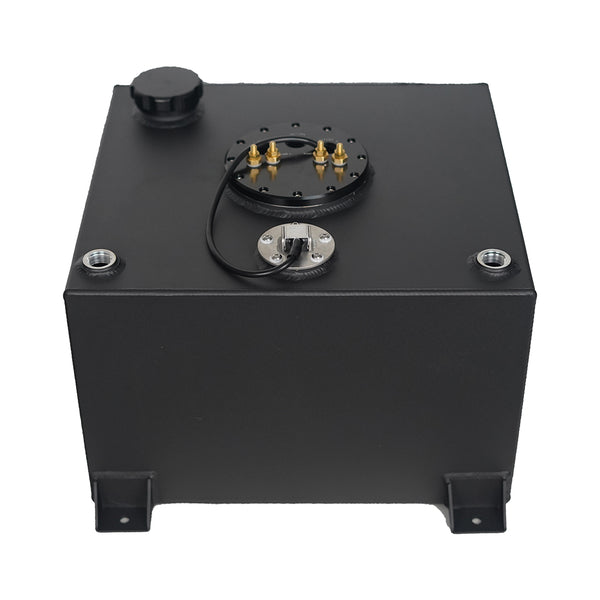

This 40L Aluminium Fuel Cell is designed for high-performance and motorsport fuel systems where reliability, fuel delivery, and surge resistance are critical. Built with internal baffling and a sump-style base, this fuel cell helps maintain consistent fuel supply under acceleration, braking, and cornering.
The integrated twin fuel pump hat supports dual fuel pump setups, making it ideal for high-horsepower builds, race cars, drift cars, track vehicles, and custom performance projects. The large dedicated filler cap allows for fast and convenient refueling, while the built-in fuel level sender makes monitoring fuel levels simple and accurate.
Constructed from durable aluminium, this fuel cell offers excellent strength while remaining lightweight. Multiple -10AN ports allow for high-flow fuel system configurations and easy integration with aftermarket fuel lines and regulators.
With four mounting points for secure installation, this fuel cell is suitable for custom fuel systems in motorsport, performance street builds, and fabrication projects.
Key Features
-
40L fuel capacity
-
Aluminium construction for strength and reduced weight
-
Internal baffling to minimize fuel surge
-
Cavity / sump base for improved fuel pickup
-

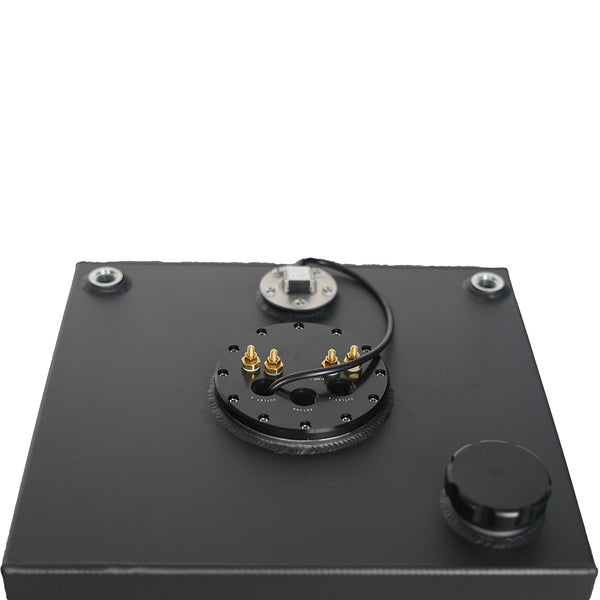

Twin fuel pump hat for dual pump setups
-
Large dedicated fuel filler cap for easy refueling
-
Built-in fuel level sender
- Colour - Black
Fuel System Ports
-

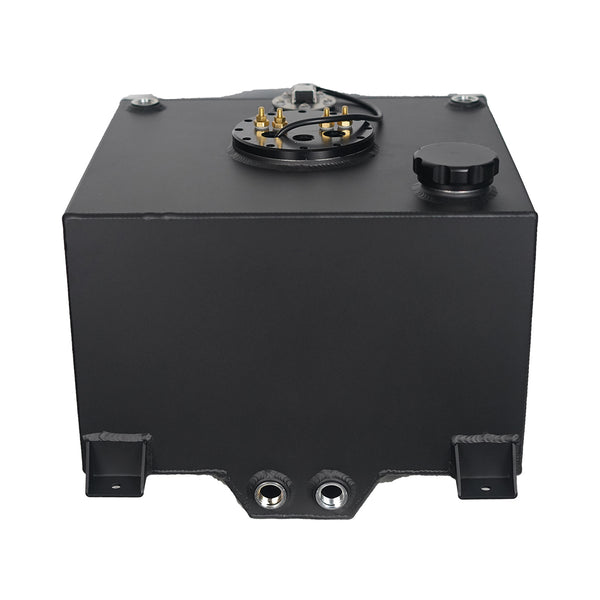

2 × -10AN fuel return fittings (top mounted)
-
2 × -10AN fuel outlet fittings (bottom sump face)
Mounting
-
4 × integrated mounting points for secure installation
Dimensions
- Height - 260mm (+ 50mm sump + 35mm Filler Cap = 345mm total)
- Width - 410mm
- Depth - 380mm (+ 40mm ea Mounting Feet = 460mm total)
Ideal For
-
Race cars
-
Drift cars
-
Track builds
-
High horsepower street cars
-
Custom fuel system fabrication
-
Motorsport applications
