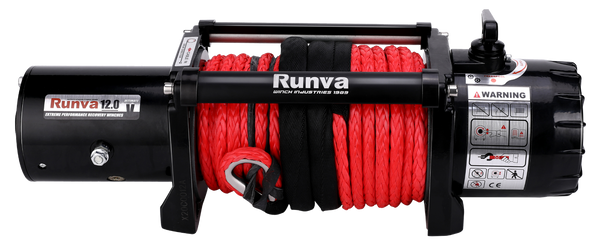

The Runva EWV12000 Ultimate is the perfect option if you want a winch that is specifically rated to 12,000lb. Perfect for just about any 4X4 on the market today - small to large. Featuring a massive 12,000lb of line pull from the powerful and reliable 5.4HP motor. The gearbox is a three stage planetary setup with tough 253:1 gear ratio to handle even the toughest recoveries. This winch might be slower than some of Runva's other models, but was designed to remain as compact and light as possible ensuring a perfect fit in any 4X4 Winch Bar/Bullbar available today.
Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is their most advanced Ratchet system which and located in the gearbox. It is super efficient and able to hold without fail when you stop winching. (The same brake as featured in Runva's vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out.
If you need a strong winch but have limited space, look no further than the EWV12000 Ultimate.

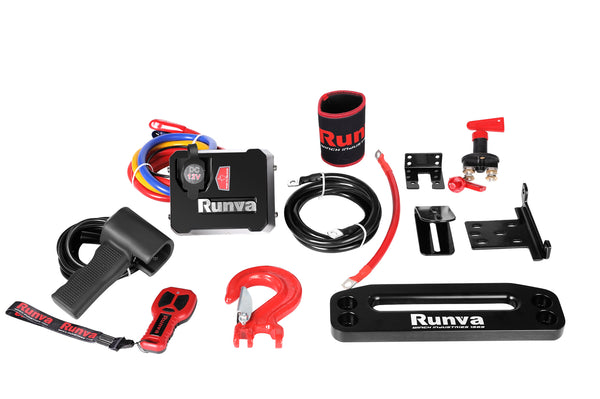

What's In The Box?!
- All necessary wiring - Control Module & Cables - Wired Handheld Control - Wireless Handheld Control - Kill Switch (Isolation Switch) - Mounting Brackets - Front Facia Plate - Large Recovery Hook - Mounting Bolts - Stubbie Holder
RATED LINE PULL12,000LB (5,443KG)
GEAR TRAINFULL STEEL 3 STAGE PLANETARY
CLUTCH TYPESLIDING RING GEAR
CLUTCH HANDLE POSITIONGEARBOX CAN BE ROTATED
BRAKEAUTOMATIC RATCHET LOAD HOLDING IN THE GEARBOX
CABLE TYPESYNTHETIC ROPE
CABLE SIZE10MM X 25M
DRUM SIZE63MM X 223MM
MOUNTING BOLT PATTERN254MM X 114.3MM
OVERALL DIMENSIONS553MM X 160MM X 200MM
REMOTE CONTROLHEAVY DUTY HANDHELD + WIRELESS
BATTERY LEADS2X 1.8M HEAVY DUTY LEADS
FINISHBLACK POWDER COAT
WARRANTYLIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY
