Features:
- Designed to be a bolt-on upgrade for more PSI
- Built with a larger compressor wheel
- Requires no modifications to fit
- Tuning is recommended but not necessary
- All turbos are balanced, flow tested and oil leak tested
- Made in Melbourne
- 24 Months Warranty

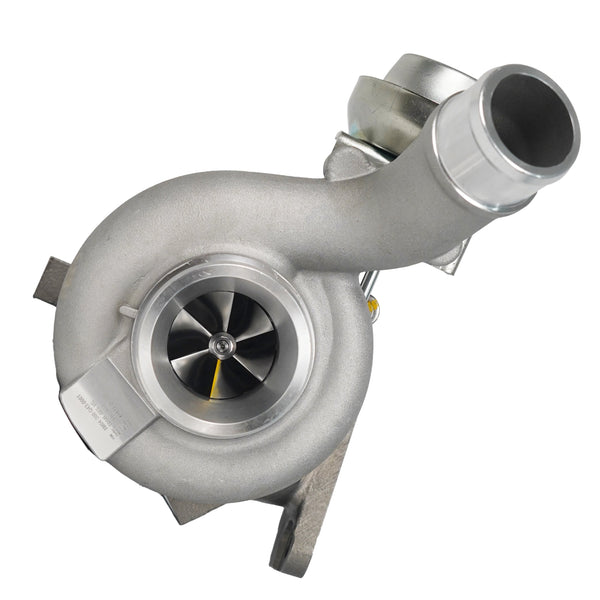

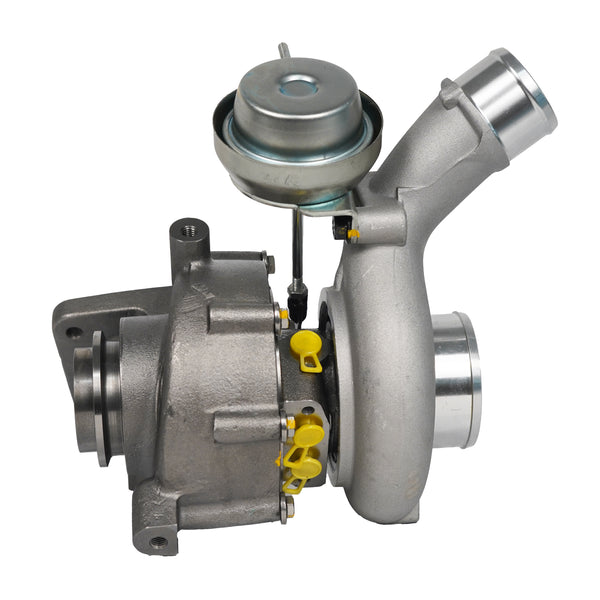

Stage Two High-flow Turbocharger for Isuzu D-Max & MU-X 3.0L 4JJ1 turbo diesel engines. Fits 4JJ1 engines from 2016-onward.
Brand: CCT Turbo
Model: TD04L-6BS
Part No: 49477-06601 / 49477-06600 / 49477-06200 / 49U77-06200 / 49477-06210 / 49477-06201
OEM Part No: 8983179296 / 8983179295 / 8983179294 / 8983179293 / 8983179292 / 8983179291 / 8983179290 / 8982179294 / 8982179293 / 8982179292 / 8982179291 / 8982179290
Vehicle:
- Isuzu D-Max 2016-onward
- Isuzu MU-X 2016-onward
Engine: 3.0L 4JJ1T turbo diesel
Gaskets: This turbo comes with a free gasket kit.
Warranty: 24 Months
Delivery: Free post to Aus wide, normally takes 2-4 days to major cities.
*Please confirm part number before purchasing turbo
Boost Pressure Information:
Tested and Warranted To 25 PSI Of Boost Pressure (If The Turbocharger Fails & There Are Any Signs Of Overspeed/Excessive Boost Pressure When Assessed, It Will Not Be Covered Under Warranty)
Recommendation:
When fitting a new turbo, ensure turbo bearing is pre-lubed before first start to avoid premature wear.
We also advise a new oil feed line is fitted to ensure correct oil feed pressure is given to the turbo without potential contaminants.
All CCT Stage One Turbochargers are assembled, balanced and air flow calibrated in house. Using slim hub technology and extended base tip design will increase the flow rate of the turbo up to 15%. The billet wheel is much lighter and stronger than a regular cast wheel, meaning it will spool up at a faster rate and also reduce pressure on the thrust bearing as having less weight will reduce the inertia thrust front to back.
